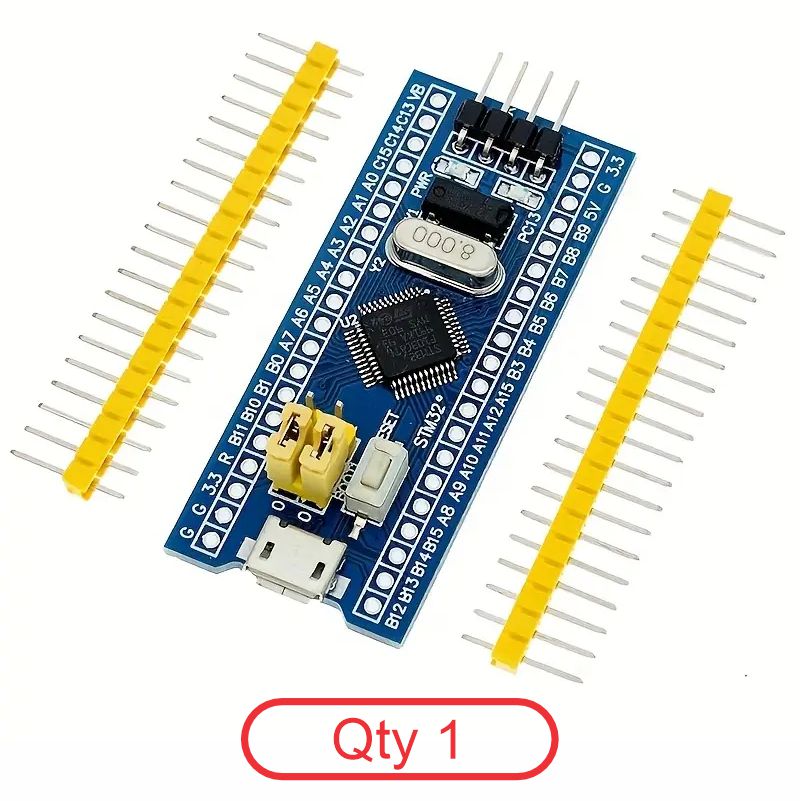

STM32f103C6T6 Dev Board

STM32f103C6T6 Dev Board Features / Specs Microcontroller: ST-Micro STM32F103C6T6 CPU: ARM Cortex M3 32-Bit RISC CPU Max CPU Frequency: 72MHz Flash Memory: 32kB SRAM: 10kB Timers: 2x 16-Bit General Purpose Timers / 1x 16-Bit PWM Timer / 2x Watchdog Timers / 1x SysTick Timer (24-Bit Downcounter) Communication Interfaces: 1x SPI...

Effective Price :

R 90.00

Default Title

Quantity :

Subtotal : R 90.00

Brand : FDM3D

Product Type : STM32f103C6T6

Availability : 4 In Stock

SKU: ELE00002

STM32f103C6T6 Dev Board

Features / Specs

Microcontroller: ST-Micro STM32F103C6T6
CPU: ARM Cortex M3 32-Bit RISC CPU
Max CPU Frequency: 72MHz
Flash Memory: 32kB
SRAM: 10kB
Timers: 2x 16-Bit General Purpose Timers / 1x 16-Bit PWM Timer / 2x Watchdog Timers / 1x SysTick Timer (24-Bit Downcounter)
Communication Interfaces: 1x SPI (18Mbit/s) / 1x I²C (SMBus; PMBus) / 2x USART / 1x USB 2.0 Full Speed Interface / 1x CAN Interface (2.0B Active)
Other Features: 2x 12-Bit ADC’s / 1x 7-Channel DMA
On-Board Crystals: 8MHz (Main Oscillator) / 32.768kHz (RTC)
Supply Voltage: 5VDC / 3.3VDC
Operating Voltage: 3.3VDC (LDO has max current rating of 300mA)
USB Connector Type: Micro USB
Programming Interface: 4-Pin SWD
Indication LEDs: 1x Power LED / 1x User Controlled LED (PC13)
Header Pin Pitch: 2.54mm
Spacing Between Header Pin Rows: 15.24mm (Breadboard Compatible)
Dimensions: ~(56.5mm x 22.6mm x 12mm)
