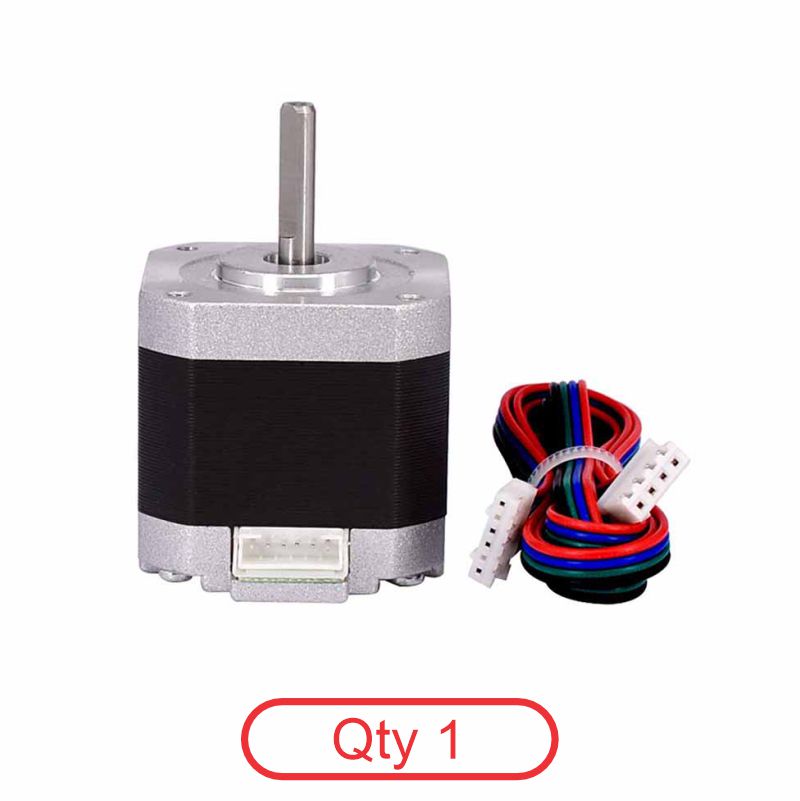

Nema 17HS4401 Stepper Motor
Electrical Specification: Motor Type: Bipolar Stepper Step Angle: 1.8 deg. Holding Torque: 40N.cm (56oz.in) Rated Current/phase: 1.7A Phase Resistance: 1.5Ohm±10% Insulation Resistance: 100MΩ¸ Min, 500VDC Insulation Strength: 500VAC for one minute Physical Specification: Frame Size: 42 x 42mm (1.7 inch x 1.7 inch) Body Length: 40mm Shaft Diameter: 5mm Number...
R 154.00
Electrical Specification:
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg.
- Holding Torque: 40N.cm (56oz.in)
- Rated Current/phase: 1.7A
- Phase Resistance: 1.5Ohm±10%
- Insulation Resistance: 100MΩ¸ Min, 500VDC
- Insulation Strength: 500VAC for one minute
Physical Specification:
- Frame Size: 42 x 42mm (1.7 inch x 1.7 inch)
- Body Length: 40mm
- Shaft Diameter: 5mm
- Number of Wire Leads: 4
- Wire Length: 400mm
- Weight: 280g
- Temperature rise: 80deg Max(rated current, 2 phase on)
Includes a 1m cable with JST PH2.0 Connectors.
