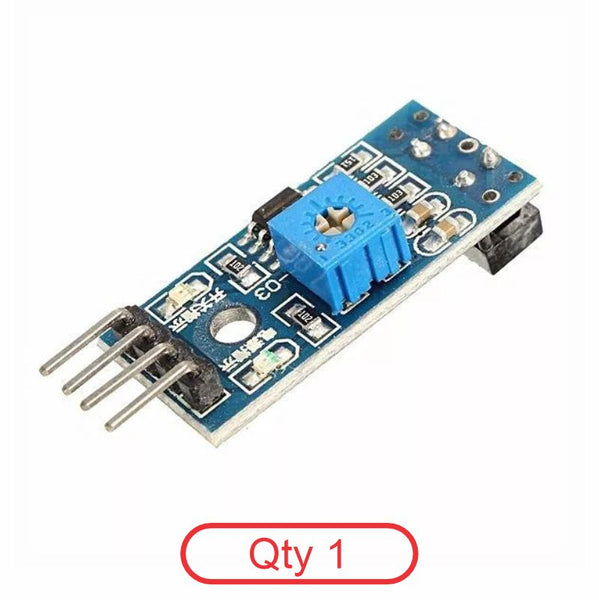

TCRT5000 Infrared Sensor
Introduction TCRT5000 sensor infrared emission diodes continue to emit infrared, when the emitted infrared rays are not reflected back or reflected back but the intensity is not big enough, the infrared receiver tube has been in the off state, then the module output is low, indicating The diode is in...
R 38.00
Introduction
TCRT5000 sensor infrared emission diodes continue to emit infrared, when the emitted infrared rays are not reflected back or reflected back but the intensity is not big enough, the infrared receiver tube has been in the off state, then the module output is low, indicating The diode is in the extinguished state; when the object is detected within the detection range, the infrared rays are reflected back and the intensity is large enough, the infrared receiver is saturated, and the output of the module is high, indicating that the diode is lit.
Specifications
1 sensor adopts TR5000, high sensitivity
2 sensitivity adjustable digital potentiometer to adjust (blue)
3 modules can induction block from 0 to 3 cm
4-5 V working voltage 3.3 V
5 a output form output analog voltage (0 to 5 v)
B digital switch output (0 and 1)
6 has a fixed bolt hole, convenient installation
7 small board PCB size: 3.5 cm * 1.5 cm
8 power indicator light (red) and digital switch output indicator light (green)
9 comparator USES the LM393 chips, work stability
2 sensitivity adjustable digital potentiometer to adjust (blue)
3 modules can induction block from 0 to 3 cm
4-5 V working voltage 3.3 V
5 a output form output analog voltage (0 to 5 v)
B digital switch output (0 and 1)
6 has a fixed bolt hole, convenient installation
7 small board PCB size: 3.5 cm * 1.5 cm
8 power indicator light (red) and digital switch output indicator light (green)
9 comparator USES the LM393 chips, work stability
Wiring:
1 VCC external 3.3 V to 5 V
2 GND external GND
3 DO small plate digital output interface (0 and 1)
4 small AO plate analog output interface (0 to 5 v)
2 GND external GND
3 DO small plate digital output interface (0 and 1)
4 small AO plate analog output interface (0 to 5 v)
