MG996R Servo
MG996R Servo Features / Specs Model: MG996R Manufacturer: TianKongRC Range of Motion: 180° Operating Voltage Range: 4.8 – 6.0VDC No-Load Speed: 0.18sec/60° @ 4.8V / 0.15sec/60° @ 6V No-Load Current: 160mA @ 4.8V / 170mA @ 6V Stall Torque: 9kg-cm @ 4.8V / 13kg-cm @ 6V Stall Current: 1100mA ±10%...
R 92.00

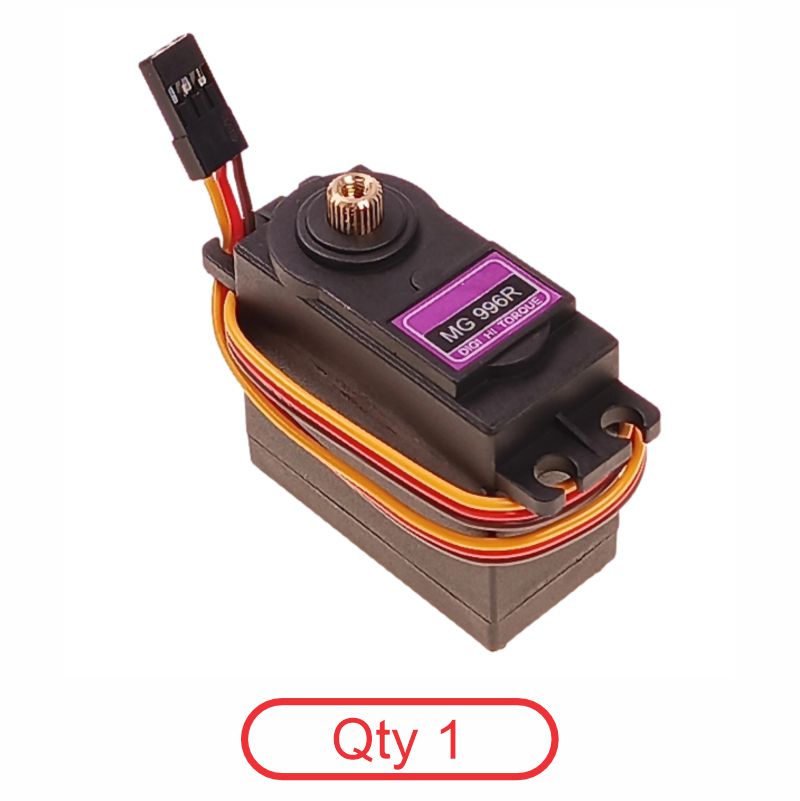

MG996R Servo
Features / Specs
- Model: MG996R
- Manufacturer: TianKongRC
- Range of Motion: 180°
- Operating Voltage Range: 4.8 – 6.0VDC
- No-Load Speed: 0.18sec/60° @ 4.8V / 0.15sec/60° @ 6V
- No-Load Current: 160mA @ 4.8V / 170mA @ 6V
- Stall Torque: 9kg-cm @ 4.8V / 13kg-cm @ 6V
- Stall Current: 1100mA ±10% @ 4.8V / 1300mA ±10% @ 6V
- Control Signal: Analog (PWM)
- Midpoint Position: 1500µsec (Centering Error = ≤ 1°)
- PWM Range: 500 ~ 2500µsec
- Dead Band Width: 8µsec
- Cable Length: ~27cm
- Servo Connector: 3-Pin JR (2.54mm Pitch)
- Output Shaft: 25T (Diameter = ~5.9mm)
- Gear Material: Iron & Copper Combination of Gears
- Bearing: No Bearing
- Dimensions: ~(40.5mm x 20mm x 39.5mm)
