Spindle Motor 220V 500W 12000RPM

Spindle Motor 220V 500W 12000Rpm

Spindle parameters: Working voltage: 12-100VDC Idle speed: about 1000-12000 rpm  Peak  power: 500W Peak  torque: 0.5NM Insulation resistance: >2 megohms Insulation dielectric strength: 400V Diameter: 52mm Chuck length: 45MM The diameter of the chuck is: 16mm Total length of motor: about 190MM Spindle radial runout 0.01-0.03 high precision Detailed technical parameters of the...
R 3,779.00
Title :
-
+
R 3,779.00

FDM3D

Spindle Motor

Out of stock

Add to wishlist

Spindle parameters:

Working voltage: 12-100VDC

Idle speed: about 1000-12000 rpm

Peak  power: 500W

Peak  torque: 0.5NM

Insulation resistance: >2 megohms

Insulation dielectric strength: 400V

Diameter: 52mm

Chuck length: 45MM

The diameter of the chuck is: 16mm

Total length of motor: about 190MM

Spindle radial runout 0.01-0.03 high precision

Detailed technical parameters of the speed regulator:

1. Input voltage AC110-AC220V±10% Global voltage 50/60Hz

2. Current limit: 6A

2. Applicable motor power: 50W～500W

3. Armature output voltage: DC0~100V adjustable

4. Dimensions: 130mm long × 100mm wide × 51mm high

5. Working environment:

6. Ambient air temperature: -10～40°C

7. Relative humidity below 85%, good ventilation.

Includes :-

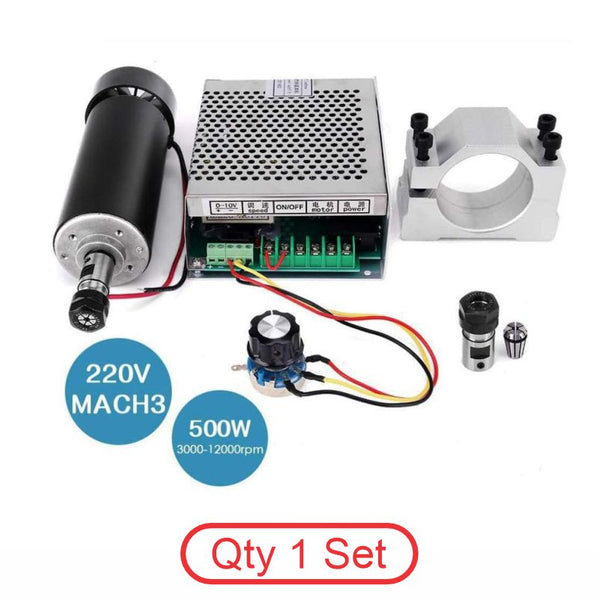

500W Spindle Motor, Motor Mount, Controller, and ER11 Collet.
