Servo Motor MG90S
Servo Motor MG90S Model: MG90S Manufacturer: TianKongRC Range of Motion: 180° Operating Voltage Range: 4.8 – 6.0VDC No-Load Speed: 0.12sec/60° No-Load Current: 90mA/6V Stall Torque: 2.0kg-cm/6V Stall Current: 750mA ±10% Quiescent Current: 5 – 6mA Control Signal: Analog (PWM) Midpoint Position: 1500µsec PWM Range: 500 ~ 2500µsec Cable Length: ~24cm...
R 79.00

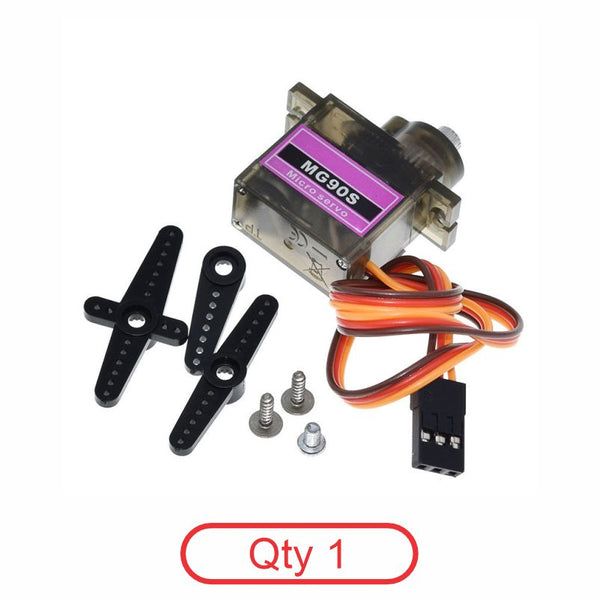

Servo Motor MG90S
- Model: MG90S
- Manufacturer: TianKongRC
- Range of Motion: 180°
- Operating Voltage Range: 4.8 – 6.0VDC
- No-Load Speed: 0.12sec/60°
- No-Load Current: 90mA/6V
- Stall Torque: 2.0kg-cm/6V
- Stall Current: 750mA ±10%
- Quiescent Current: 5 – 6mA
- Control Signal: Analog (PWM)
- Midpoint Position: 1500µsec
- PWM Range: 500 ~ 2500µsec
- Cable Length: ~24cm
- Servo Connector: JR (2.54mm Pitch)
- Output Shaft: 20T (Diameter = ~4.9mm)
- Gear Material: All Metal
- Servo Motor Weight (Excluding Accessories / Including Cable): ~12.7g
- Dimensions: ~(22.8mm x 12.1mm x 22.4mm)
Wire Colour Description
- Brown Wire-> Ground
- Red Wire-> Supply Voltage (4.8 – 6VDC)
- Orange Wire-> Signal Pulse Input
