Spindle Motor 220V 500W 12000Rpm
Spindle parameters:
Working voltage: 12-100VDC
Idle speed: about 1000-12000 rpm
Peak power: 500W
Peak torque: 0.5NM
Insulation resistance: >2 megohms
Insulation dielectric strength: 400V
Diameter: 52mm
Chuck length: 45MM
The diameter of the chuck is: 16mm
Total length of motor: about 190MM
Spindle radial runout 0.01-0.03 high precision
Detailed technical parameters of the speed regulator:
1. Input voltage AC110-AC220V±10% Global voltage 50/60Hz
2. Current limit: 6A
2. Applicable motor power: 50W~500W
3. Armature output voltage: DC0~100V adjustable
4. Dimensions: 130mm long × 100mm wide × 51mm high
5. Working environment:
6. Ambient air temperature: -10~40°C
7. Relative humidity below 85%, good ventilation.

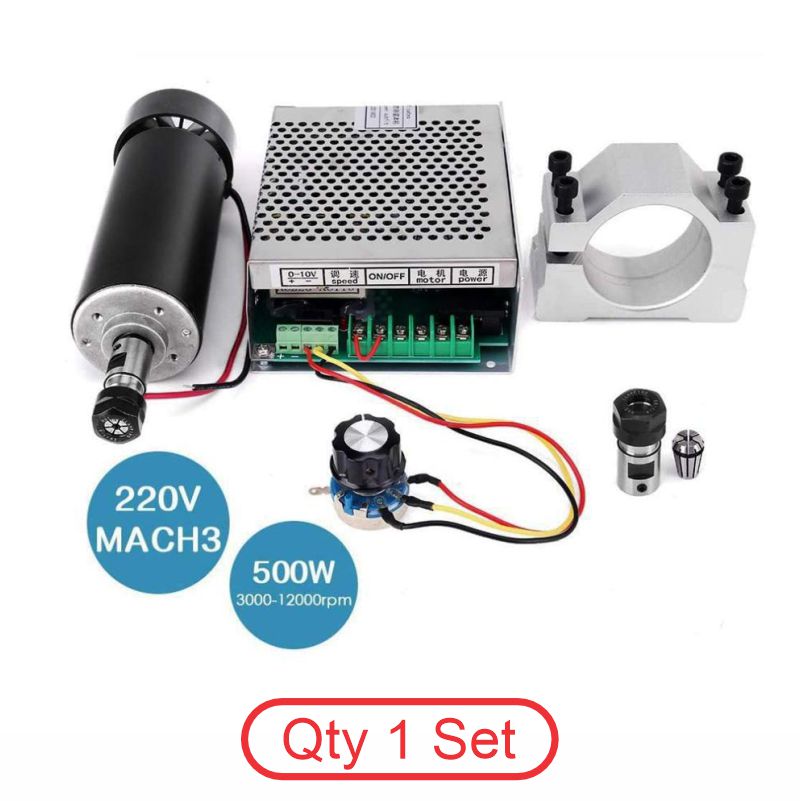

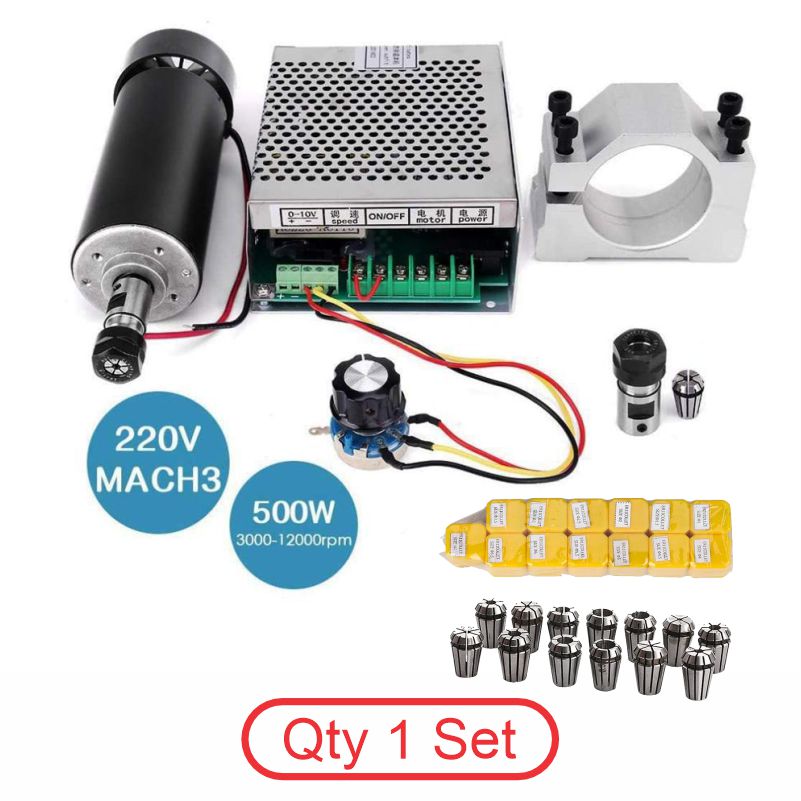

Includes :-
500W Spindle Motor, Motor Mount, Controller, and ER11 Collet.
